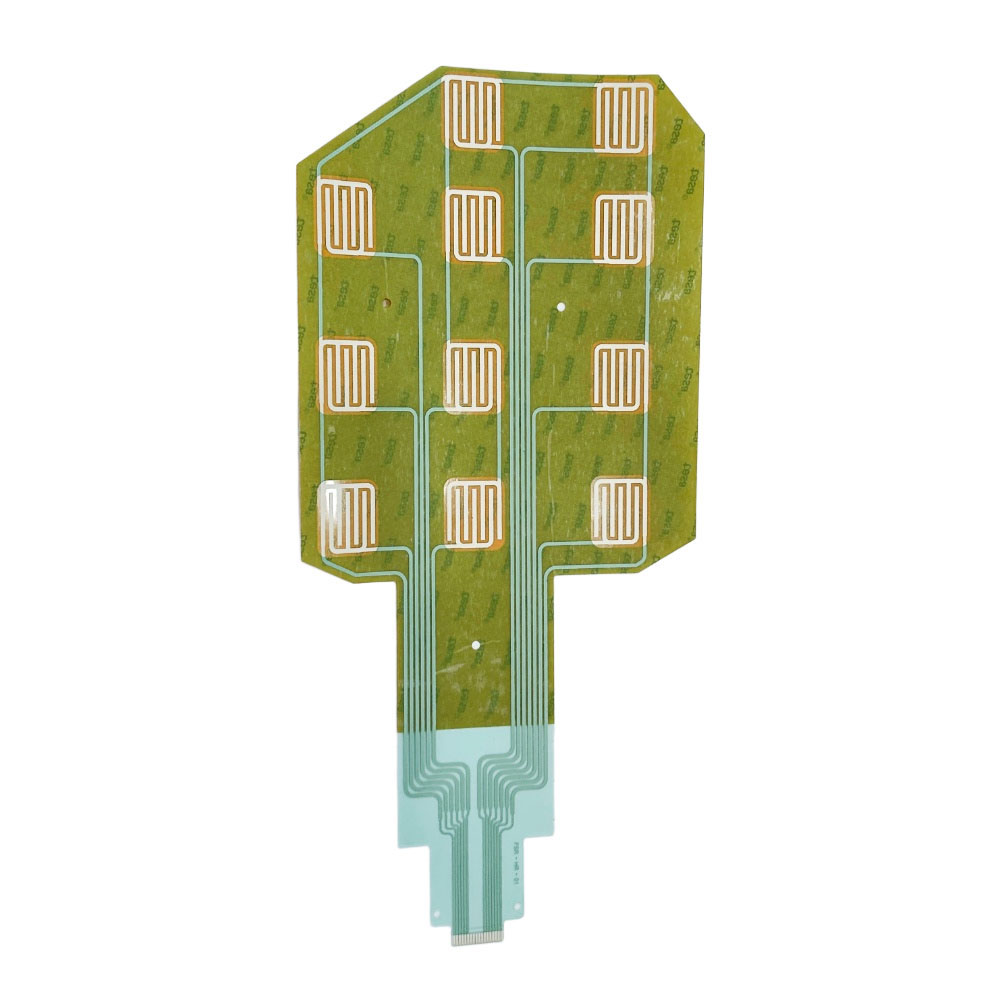

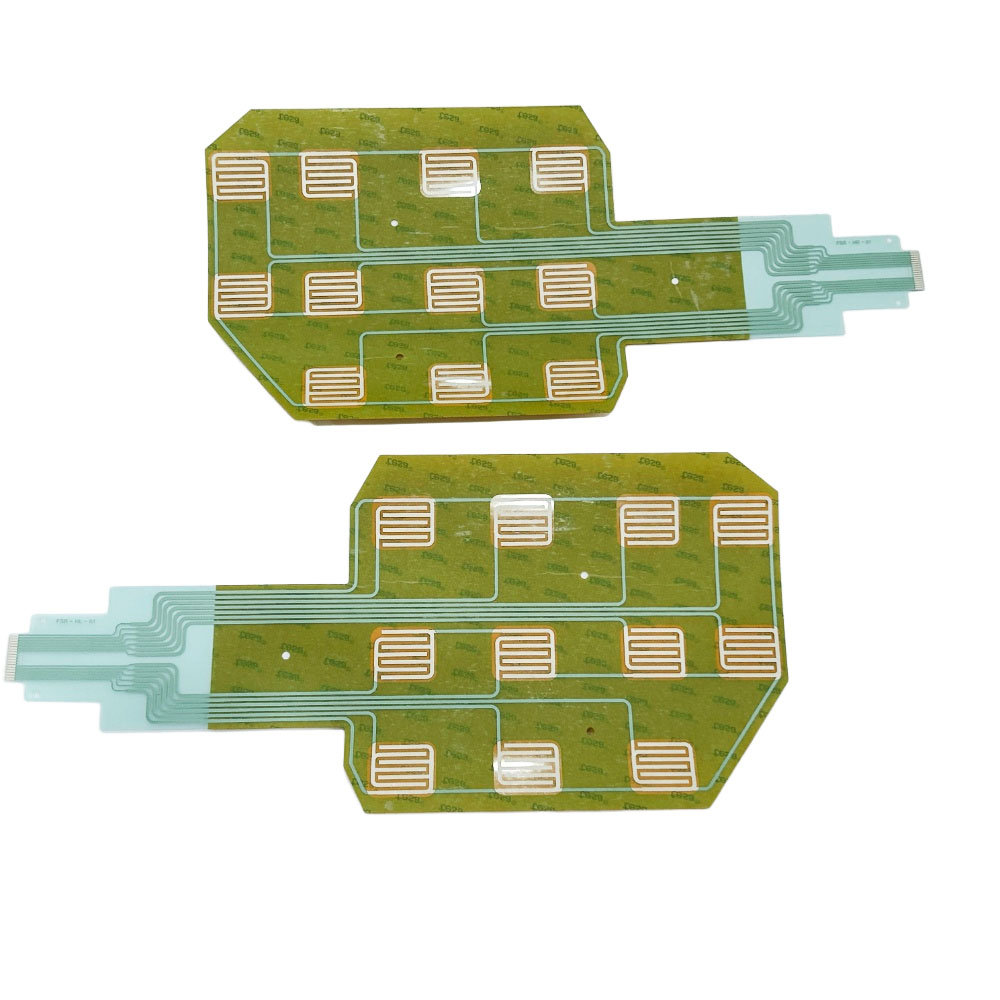

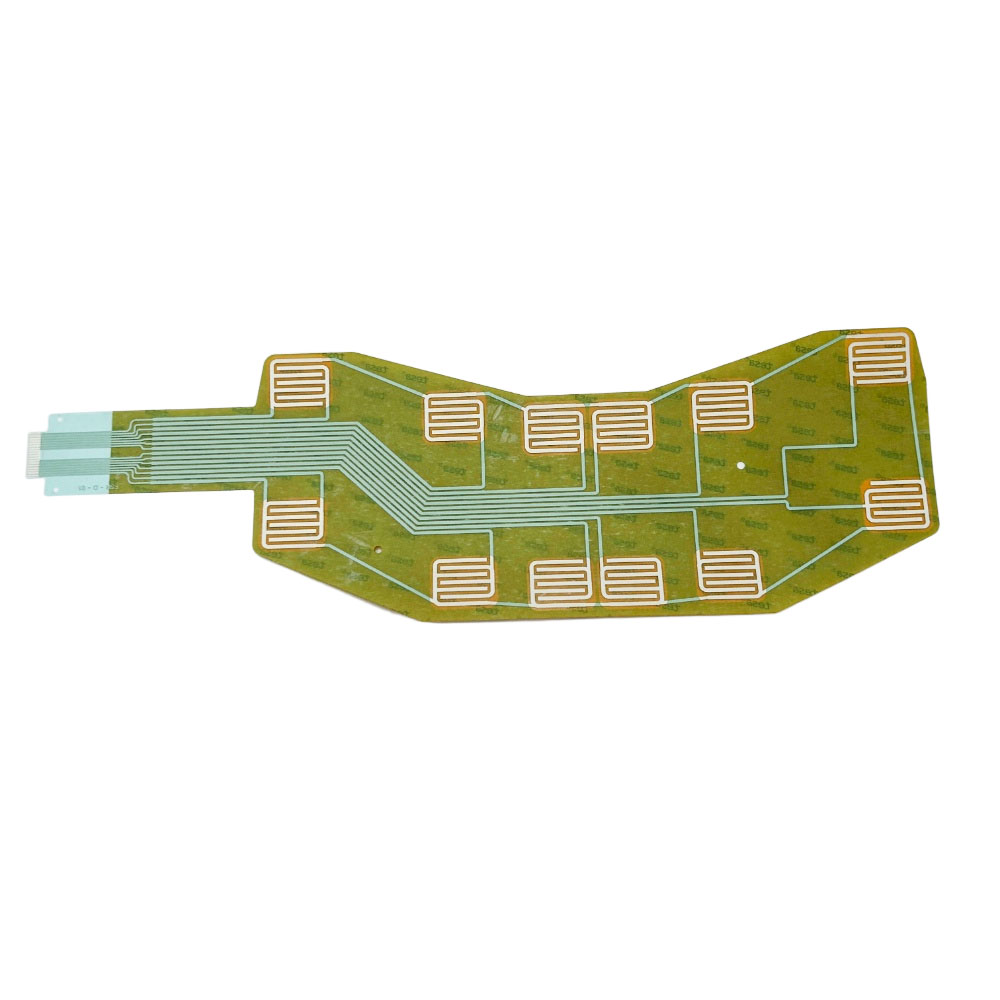

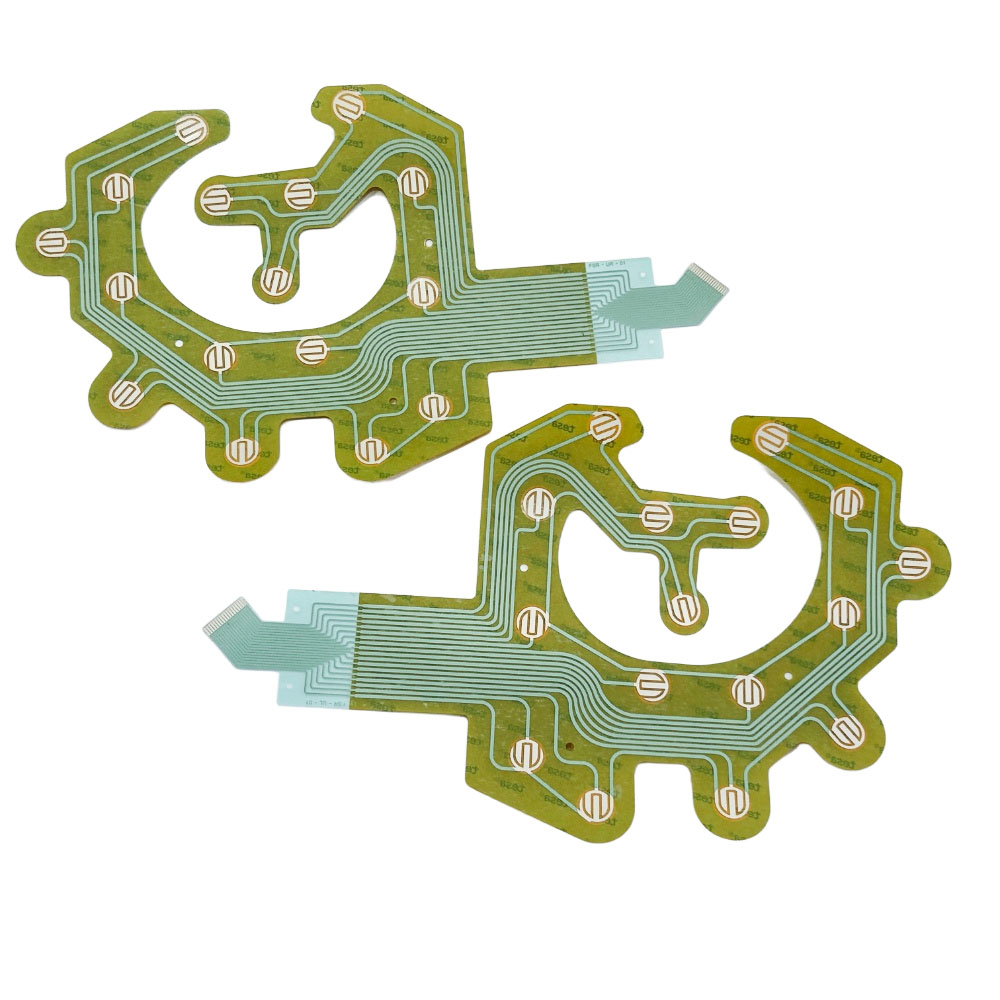

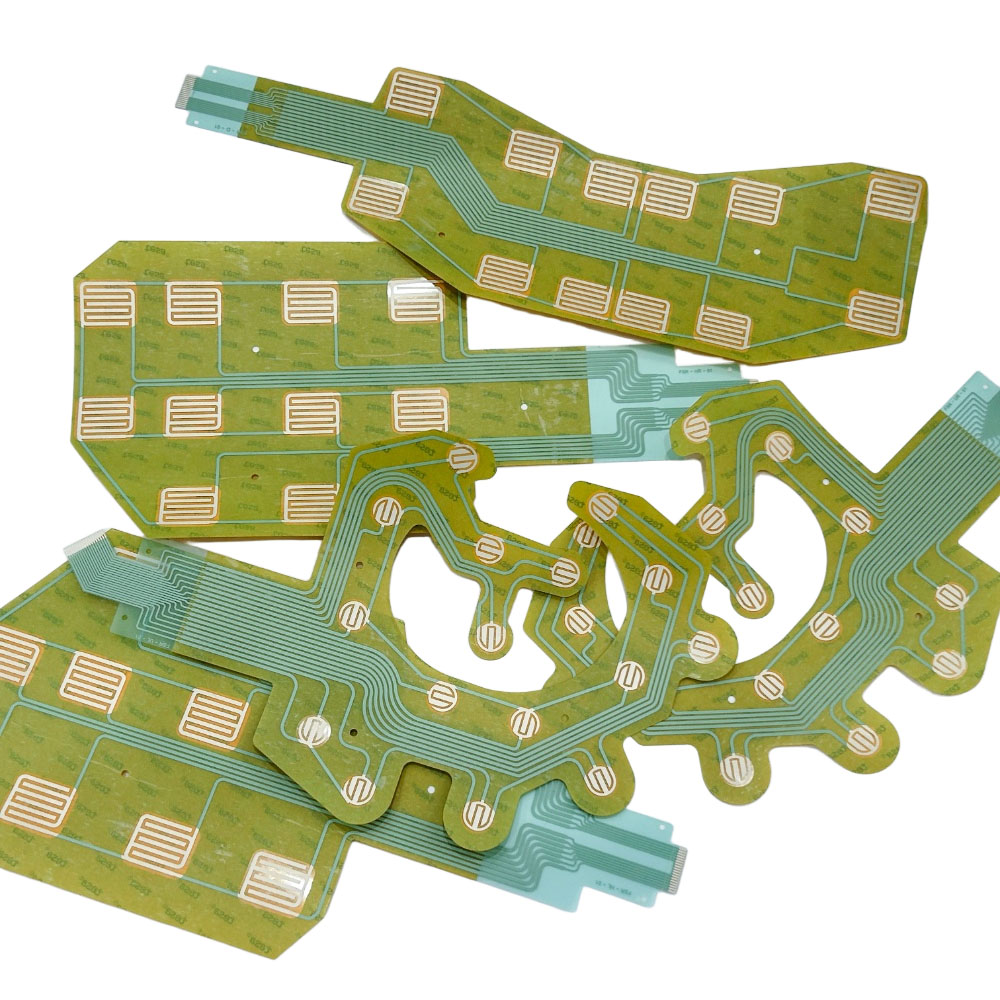

The main features of PET Flexible Circuit Membrane Switch :
Structural features: Membrane switches consist of four main parts: the panel, upper circuit, isolation layer, and lower circuit. When the switch is pressed, the contacts of the upper circuit deform and come into contact with the plates of the lower circuit to complete the circuit. When released, the contacts spring back, breaking the circuit and triggering the signal loop.
Performance features:
Waterproof, dustproof, oil-resistant, and resistant to harmful gas corrosion: Thin film switches have excellent sealing properties and can operate stably in harsh environments.
High durability: They have a long service life, typically exceeding one million operations.
Lightweight and compact: They can be arranged and combined into thin film keyboards, with an overall thickness of 1-3 mm, lightweight, and compact.
Stable and reliable performance: With a rigorous structure, attractive appearance, and excellent sealing properties, they effectively resist moisture and ensure long-term stable use.
Features of different types:
Flexible membrane switches: Utilize PET or FPC circuits, offering flexible properties suitable for environments requiring bending.
Rigid membrane switches: Utilize PCB circuit boards, featuring high hardness and stability, suitable for environments requiring fixed installation.
3D membrane switches: Keypads are slightly raised, enhancing recognition speed and tactile sensitivity, suitable for applications requiring distinct operational feedback.
Application Areas
Consumer Electronics: Widely employed in computer keyboards, laptop keyboards, electronic stationery, mobile phones, induction hobs, range hoods, water heaters and similar products.
Industrial Control: Suitable for operation panels in CNC machine tools, PLC controllers, measuring instruments and other equipment, maintaining stable performance in industrial environments.
Medical Devices: Used in monitors, infusion pumps, diagnostic equipment and similar applications, meeting medical device requirements for sealing, hygiene and reliability.
Automotive Electronics: Frequently employed in button controls for vehicle centre consoles and instrument panels, such as audio system switches and climate control switches.
What is the Service Life of PET Flexible Circuit Membrane Switch?
PET substrate characteristics: PET film inherently possesses excellent fatigue resistance and resilience, rapidly regaining its shape after repeated pressing. This forms the foundation for achieving high durability. Premium PET substrates can withstand tens of thousands of bending cycles, providing fundamental assurance for switch performance.
Conductive Materials and Processes:
When employing conductive silver paste for printed circuits, the paste's adhesion and oxidation resistance directly impact longevity. Poor adhesion may cause silver paste detachment during pressing, while insufficient oxidation resistance leads to contact failure through oxidation.
Printing precision is equally critical. The clarity of circuit pattern edges and uniformity of thickness both influence current conduction stability and durability.
Operating Environment and Usage Practices:
Excessive environmental humidity or temperature, or the presence of oil residues and dust, may accelerate circuit corrosion or cause poor contact, thereby shortening service life.
Excessive pressing force (exceeding the design threshold, typically 100-300g) or frequent single-point high-intensity pressing will accelerate wear on the membrane and contacts.
