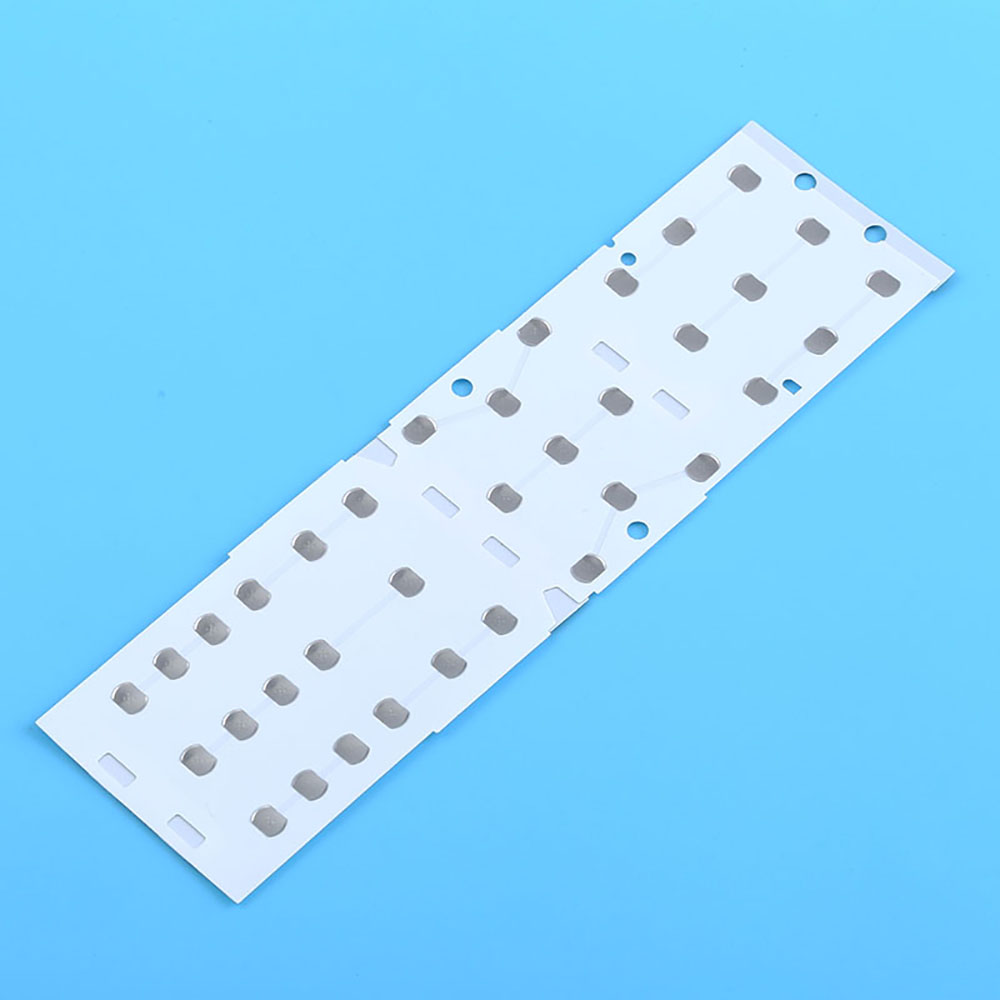

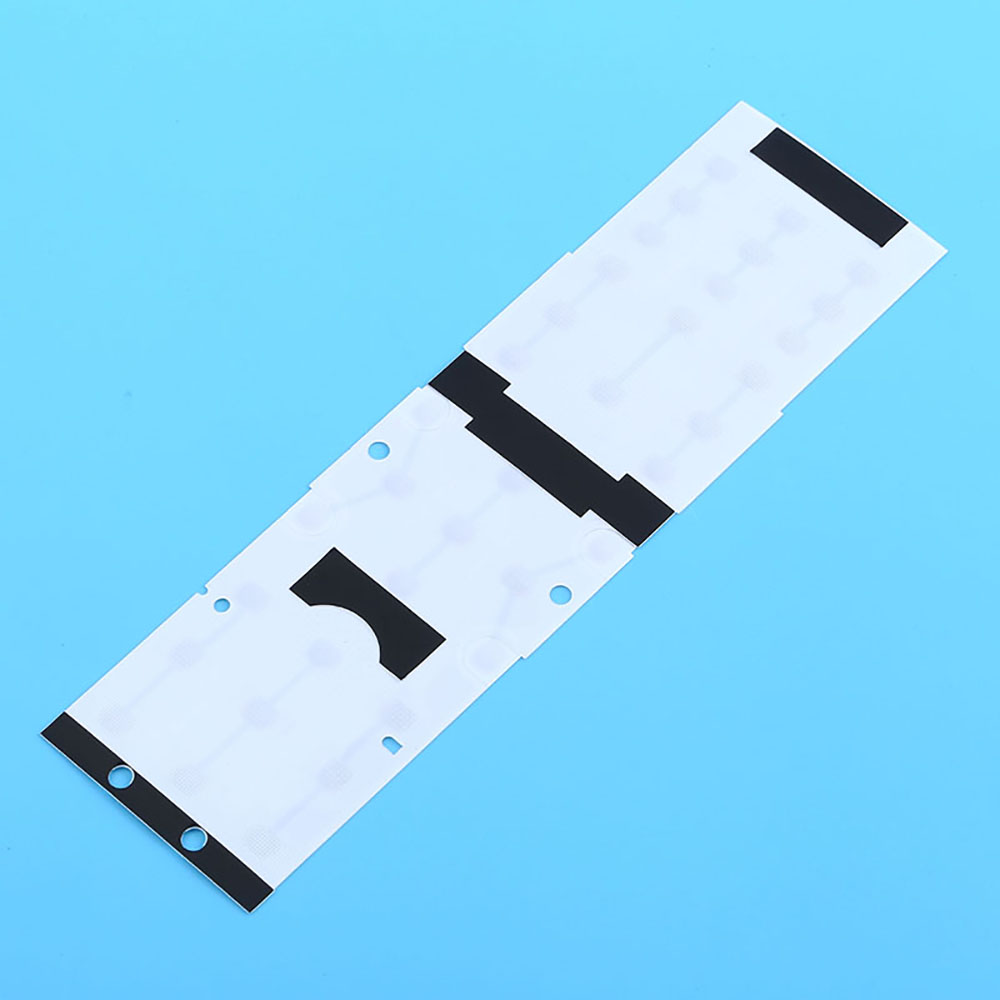

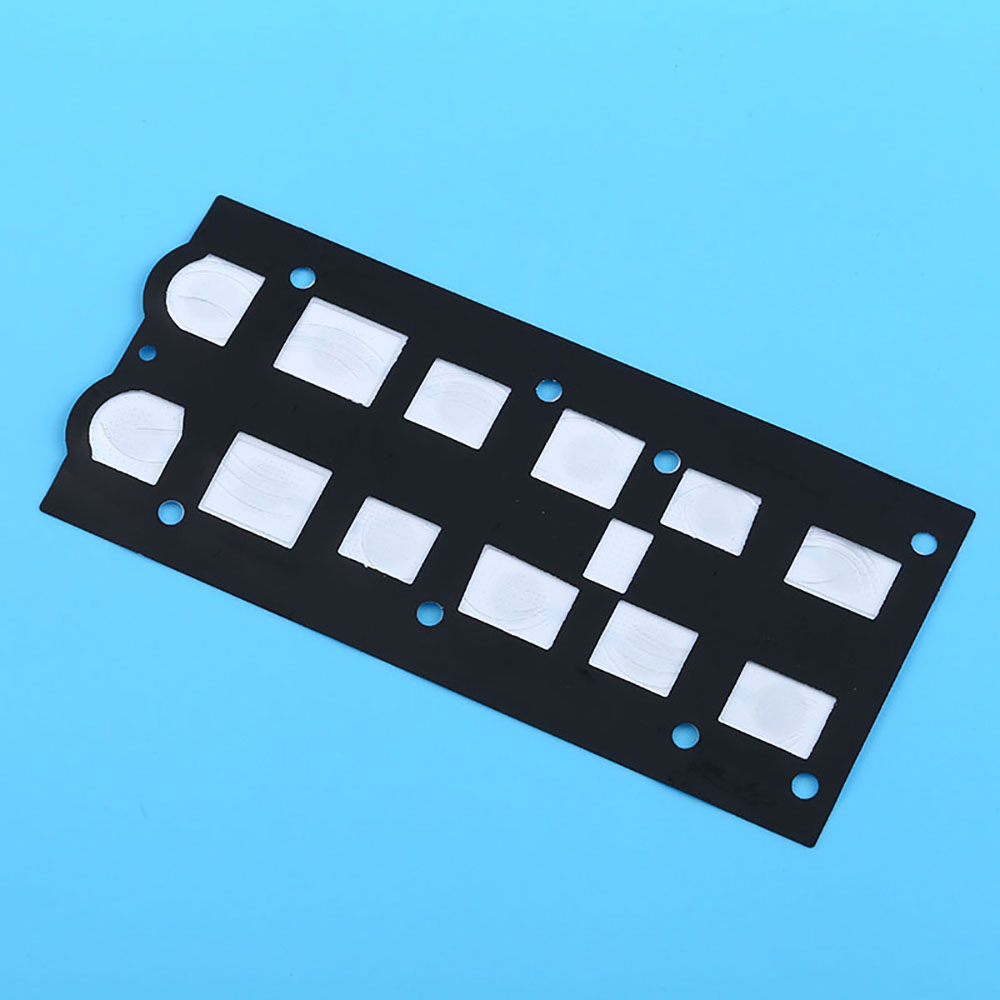

What Are the Benefits of High-Performance Metal Dome Array
Uniform backlight: LGF light guide film can effectively distribute the backlight evenly to the key surface, avoiding obvious uneven brightness and light spots, thus providing a softer and more comfortable backlight effect.
Energy saving and electricity saving: Because the LGF light guide film can effectively guide the light source to the key surface, it can reduce power consumption while maintaining the brightness of the backlight, which helps to extend the use time of the mobile phone battery.
Detailed display: LGF light guide film can accurately guide the backlight to a specific area of the button, so that the pattern, logo and other details on the button are clearly visible, and improve the aesthetics and user experience of the mobile phone.
Stability and durability: The LGF light guide film manufactured with high-quality materials and processes has high stability and durability, and can maintain a good backlight effect during long-term use.
Custom Design Dome Array
Dome arrays are carriers pre-fitted with polyester domes, featuring pressure-sensitive adhesive on the reverse. Arrays can be cut to your specified dimensions and shapes, pre-fitted with your chosen domes. Domes of varying sizes, shapes, and spring rates can be placed on the same array.
Standard carrier material is polyester, though this can be adjusted to suit requirements. Installation is swift and straightforward: simply peel off the backing (release paper), align the array, and adhere it to the circuit board or film substrate. As all domes can be installed simultaneously, production time is significantly reduced. Custom dome arrays also eliminate ‘double doming’ and positioning errors, markedly enhancing product quality.
To initiate the custom dome array design process, please provide the following information:
Part appearance drawings/prints, specifying overall dimensions, bump part numbers, bump locations, and aperture layout.
Metal dome array use cases
Mobile phones / Walkie-talkies: Metal reed switch arrays are employed for side buttons (power button, volume buttons, mute button) and certain concealed function buttons on the body.
Cordless phones / parent-child units: Metal reed switch arrays are integrated into the body's numeric keypad and function keys (answer, hang up, hands-free).
Various Remote Controls: All buttons on remote controls for televisions, air conditioners, set-top boxes, projectors, etc., rely on metal reed switch arrays for actuation.
Smart Home Control Panels: In wall-mounted or tabletop control panels for smart door locks, curtain controllers, light switches, etc., metal reed switch arrays serve as the core of concealed switches. They work in conjunction with touch panels to enable press actuation, offering dustproof and waterproof properties to withstand complex domestic usage environments.
Portable audio-visual devices: Play/pause, track selection, and volume control buttons on MP3/MP4 players, radios, digital photo frames, and similar devices utilise compact metal reed switch arrays.
Gaming equipment: Function keys, directional buttons, shoulder buttons on controllers, and auxiliary keys on gaming keyboards utilise high-resilience (120-180g) metal reed switch arrays.
Audio-visual playback devices: Control buttons on Blu-ray players and audio systems utilise metal spring contact arrays for circuit actuation. Their low contact resistance minimises signal loss, ensuring rapid device response.
Compact computing and storage devices: Keyboard buttons on electronic calculators, electronic dictionaries, and learning machines employ lightweight metal spring contact arrays.
Kitchen appliances: Control panel buttons for microwave ovens, rice cookers, soy milk makers, etc., utilise high-temperature resistant, dustproof metal spring contact arrays.
Electronic Toys: Control buttons for toy cars, robots, and remote-controlled aircraft, alongside trigger buttons for interactive toys, rely on the high sensitivity and impact resistance of metal reed switch arrays. These components withstand repeated pressing and minor impacts from children while providing rapid response to operational commands—such as forward/steering buttons on toy cars or motion-trigger keys on robots.
Wearable devices: Side buttons (power on/off, function switching) on smart bracelets and watches utilise miniature metal reed switch arrays. Their compact size and excellent waterproofing meet the stringent demands of wearable device usage scenarios.
Cameras and imaging equipment: Shutter and zoom buttons on digital cameras and instant cameras utilise high-precision metal reed switch arrays. Featuring short actuation travel and rapid triggering, they enable users to capture fleeting moments while withstanding frequent operation during outdoor photography.
