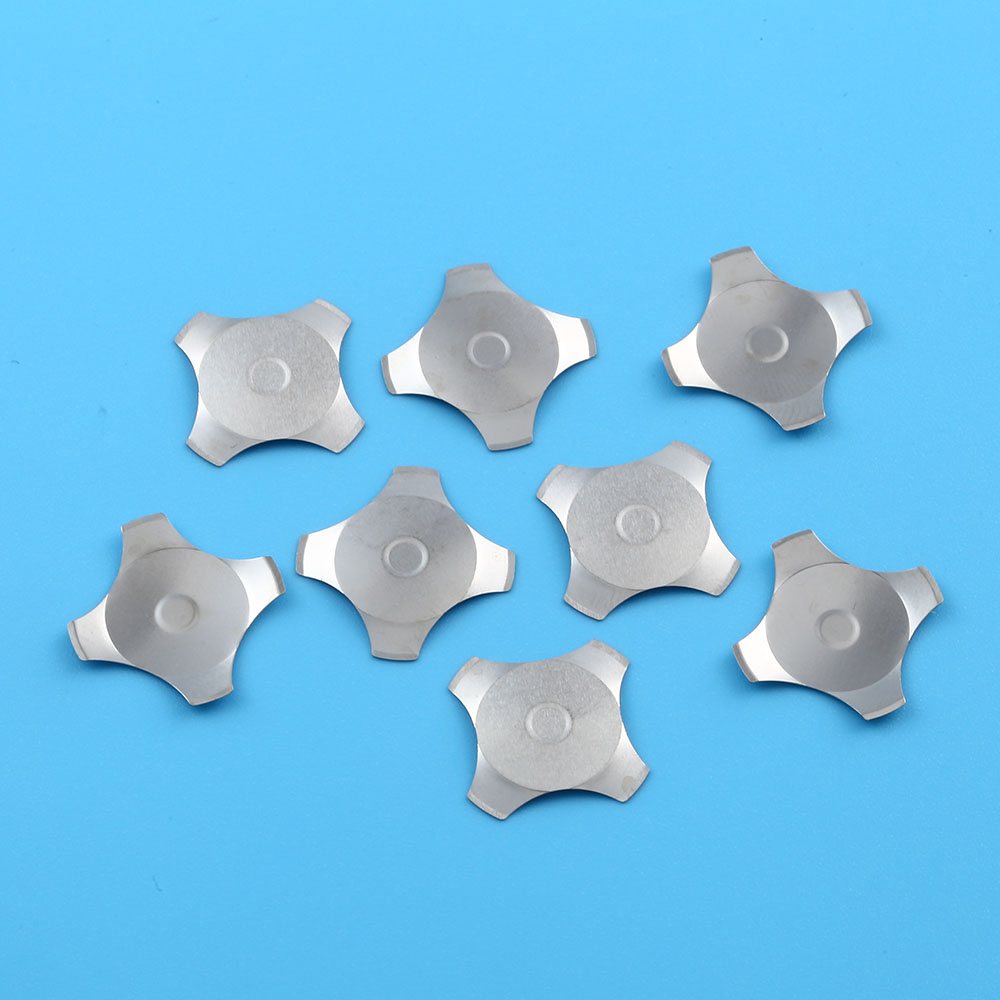

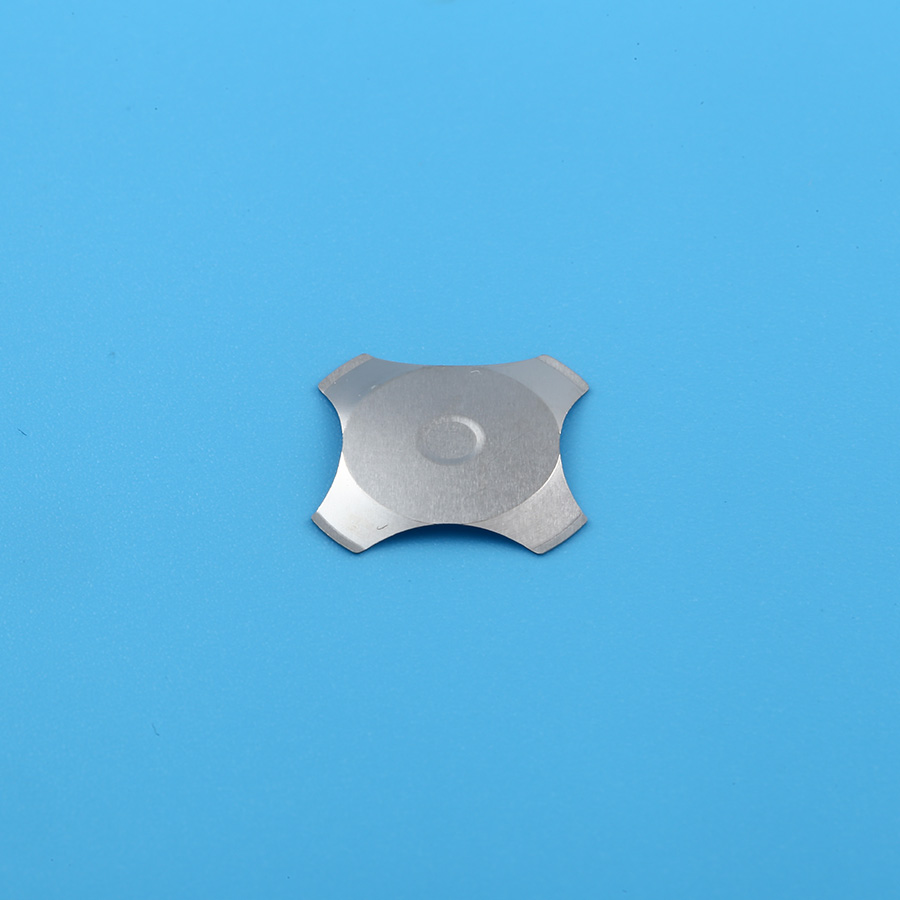

The Cross shaped metal dome is a symmetrical elastic structure formed by crossed metal thin sheets, suitable for multi-directional touch and high-density array layout.
Cross-shaped metal domes feel sharp when pressed. You feel a clear click with these domes. The cross shape lets the dome snap fast. This helps in places like factories. These domes do not wear out quickly. You can use them in tough places. Cross domes are good for control panels and machines.
Cross-shaped metal dome Feature
Shape:Cross-shaped
Diameter:5-20mm
Force:125-1000gf

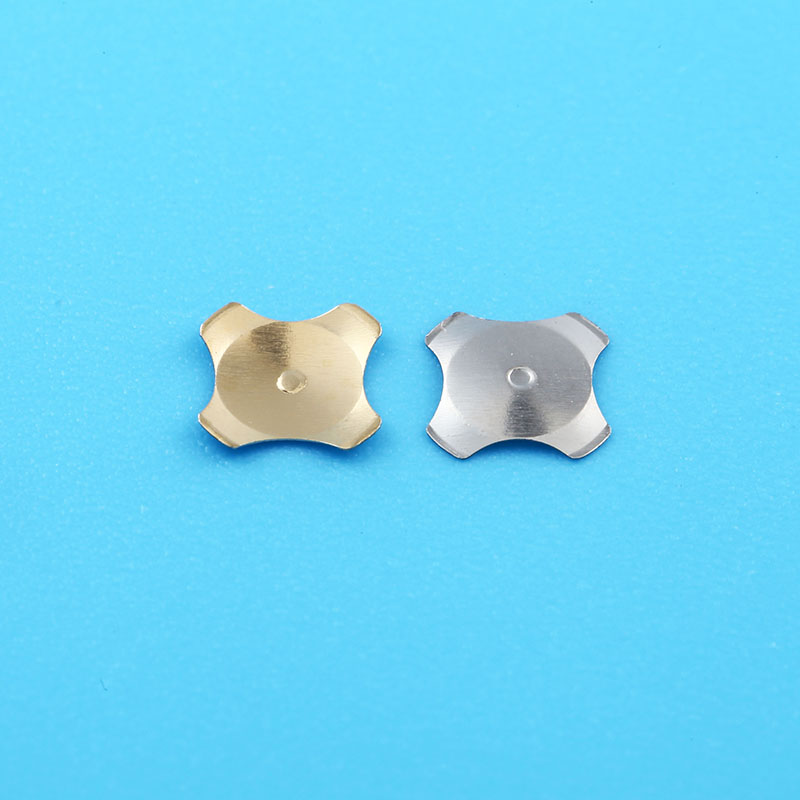

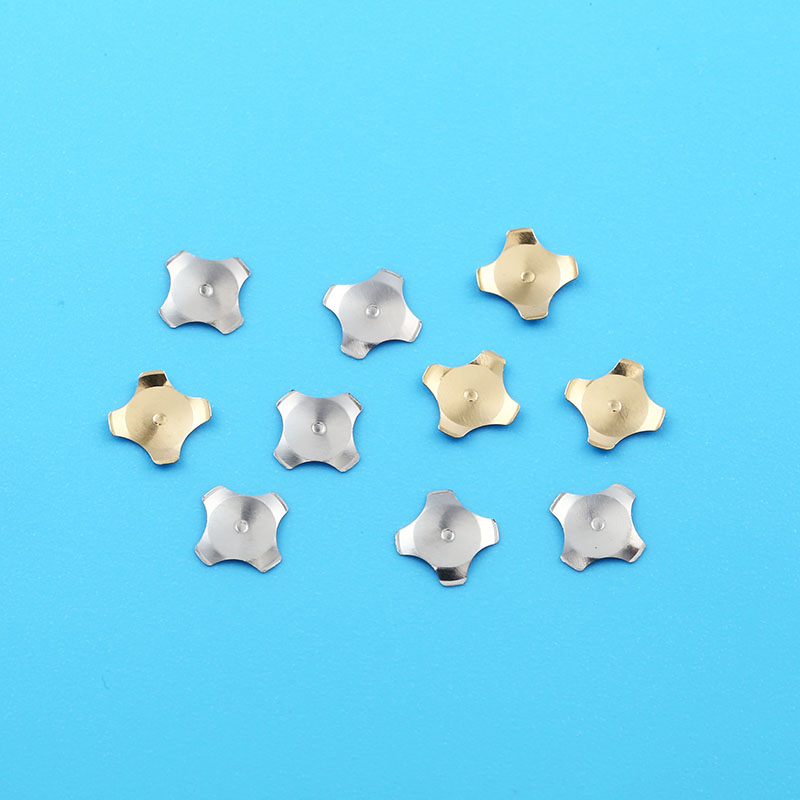

Surface plated:gold, silver, nickle
Advantages of Cross-shaped Metal Dome
Large stroke and heavy force: Cross-shaped metal dome feature a large stroke and relatively heavy force, making them ideal for applications requiring significant operating force.
High conductivity: Customers often use gold-plated spring sheets due to their low resistance and strong conductivity, which produce a clear sound during operation, making them suitable for applications requiring excellent conductivity.
Wide range of applications: Cross-shaped metal domes are commonly used in access control devices, intercom building systems, and other applications requiring high force and large stroke.
Stable and reliable: Due to their stable current circuit and high-quality conductivity, they maintain good resilience even after repeated presses, extending their service life.
Design flexibility: Cross-shaped metal domes of various sizes and dimensions can meet diverse design requirements, enhancing project flexibility and versatility.
Customised Solutions
1. Bespoke Dimensions and Shapes:
Tailored Design: Custom dome switches can be engineered to accommodate specific spatial constraints and layout requirements.
Enhanced Integration: Custom forms such as triangular, elliptical, or irregular shapes can be crafted to seamlessly integrate with equipment design.
2. Variable Actuation Force:
Personalised Feedback: Custom domes enable designers to precisely set the required actuation force for optimal tactile response.
User Preference: Ensures switches respond precisely to user input, enhancing usability and satisfaction.
3. Enhanced Tactile Feedback:
Precision Engineering: Custom dome switches deliver accurate tactile responses, guaranteeing consistency and reliability.
Performance Optimisation: Such customisation is critical for applications demanding stringent feedback precision, such as medical devices or aerospace control systems.
4. Enhanced Durability:
Extended Service Life: Customised switches can be engineered to withstand higher usage frequencies through reinforced materials and manufacturing processes.
Reliability Assurance: This is particularly crucial for high-reliability applications such as industrial machinery or public infrastructure.
5. Aesthetic Customisation:
Design Integration: Customised domes can incorporate backlighting, distinctive surface finishes, or specific colour schemes to harmonise with equipment aesthetics.
Brand Identity: This facilitates maintaining a consistent design language, enhancing the product's overall visual appeal.
