What is a metal dome?
A metal dome tactile switch is a specialised component widely employed in the manufacture of various electronic devices, including printed circuit boards (PCBs), membrane switches, and other user input devices. Such dome arrays comprise multiple independent metal dome switches arranged in a predetermined pattern or array upon a substrate.
Within PCB design, metal dome arrays are frequently integrated into user interface elements such as buttons or switches to provide tactile feedback and replace board-mounted switches. Within membrane switch structures, metal dome arrays are frequently employed to manufacture responsive keys with tactile feedback. The array is positioned between the top-layer film and the underlying circuit layer of the membrane switch assembly. When pressure causes the metal dome to collapse, tactile feedback is generated to signal user input.
What are the advantages of dome switch arrays?
Incorporating dome switch arrays into products offers numerous benefits, including enhanced user experience, increased durability, and optimised design and functionality.
Haptic feedback: Provides a satisfying click or crisp tactile sensation upon actuation.
Durability: Metal dome switch arrays exhibit exceptional longevity, withstanding millions of operations without compromising tactile properties.
Space Efficiency: Compared to traditional mechanical switches, metal dome arrays offer a more compact spatial solution. Their low-profile structure enables slimmer electronic device designs, particularly suited for space-constrained or weight-sensitive applications.
Cost-Effectiveness: Metal dome arrays present a significant cost advantage over alternatives such as mechanical switches or capacitive touch sensors.
Customisation: They can be tailored to specific design requirements through parameters such as shape, size, actuation force, and haptic feedback. This flexibility enables designers to create bespoke user interfaces that align with both aesthetic and functional product needs.
Easy integration: Metal dome arrays integrate seamlessly into PCB or membrane switch designs, requiring minimal additional components or assembly steps. This streamlines manufacturing processes, shortens electronic device time-to-market, and delivers cost savings and efficiency gains.
Types of Metal Dome Arrays
Metal dome arrays come in various types, each possessing unique characteristics tailored for specific application scenarios.
Four-Leg Metal Dome:
The dome connects to the circuit layer via four legs, providing clear tactile feedback. This versatile dome array is widely used across diverse scenarios.
Indented Metal Dome:
Adding an indentation at the dome's centre concentrates pressure on the force-applying side, enhancing the tactile feedback effect.
Triangular Metal Dome:
The triangular structure delivers a distinctive tactile experience.
Circular Metal Micro-Dome:
Employed in membrane switch structures, pressure is evenly distributed across the entire dome surface.
Dual-Stage Metal Micro-Dome:
Offers two distinct pressure levels, producing a specific tactile sensation upon initial press and a different feedback when higher force is applied.
Polyester Embossed Dot:
Commonly known as polyester dots, these are formed by embossing a polyester layer within the structure, offering high cost-effectiveness. They provide good tactile feedback and enable switch operation, while also allowing conductive ink printing on the underside of the polyester layer for circuit connection.
Custom Metal Dot:
Parameters such as shape, size, and mechanical properties can be customised.

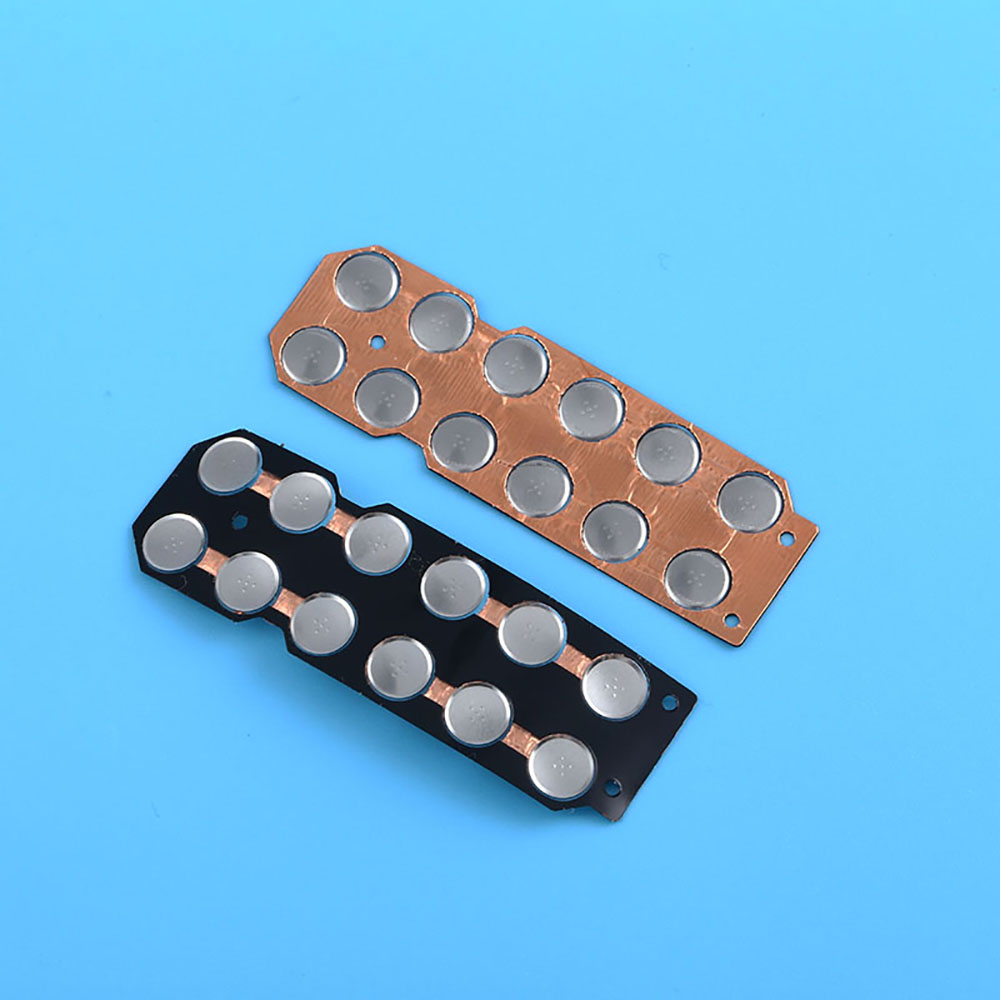

Circular aluminum foil bumps metal dome array for Any Application
Selecting the appropriate dome is crucial for delivering precise feedback. When choosing between metal domes or dome arrays, the operating environment of the interface must also be considered. In certain scenarios—such as fire engines or heavy industrial settings—users may operate while wearing gloves. This necessitates larger domes and stronger tactile feedback to ensure clear confirmation that the switch has been activated.
