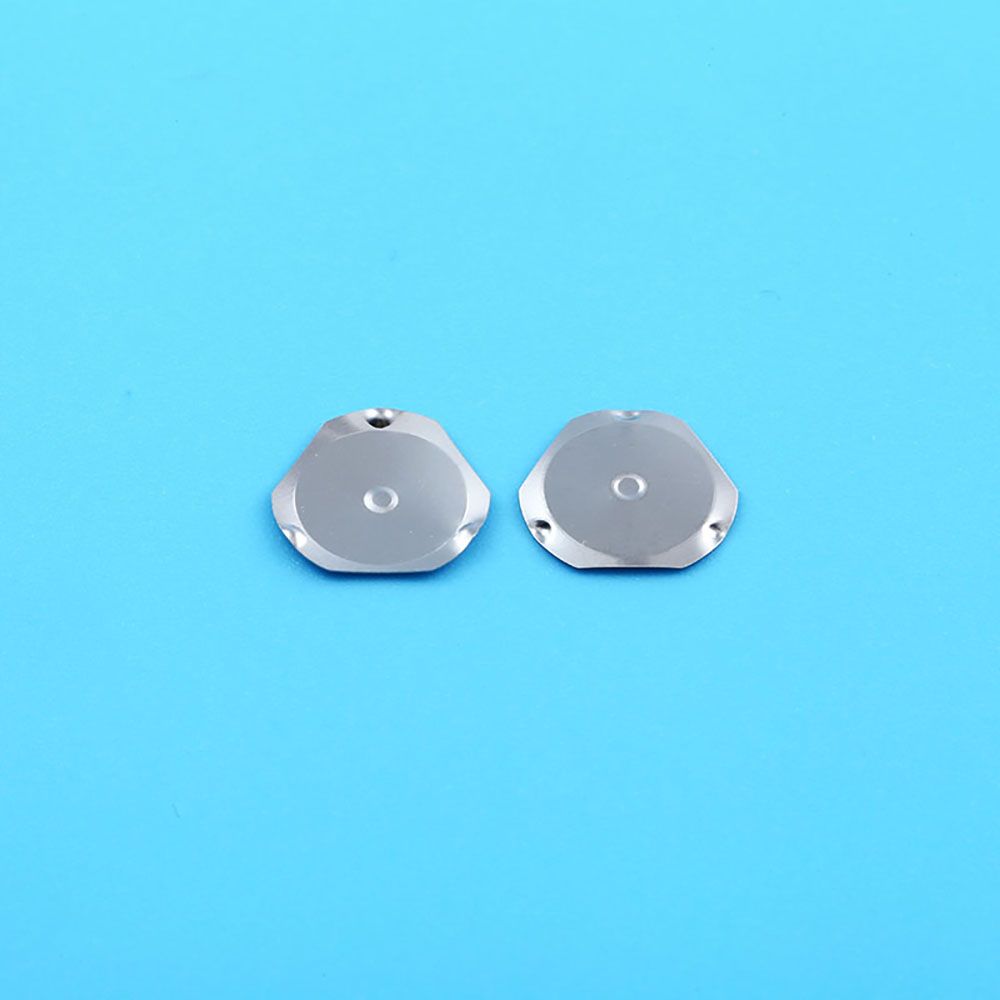

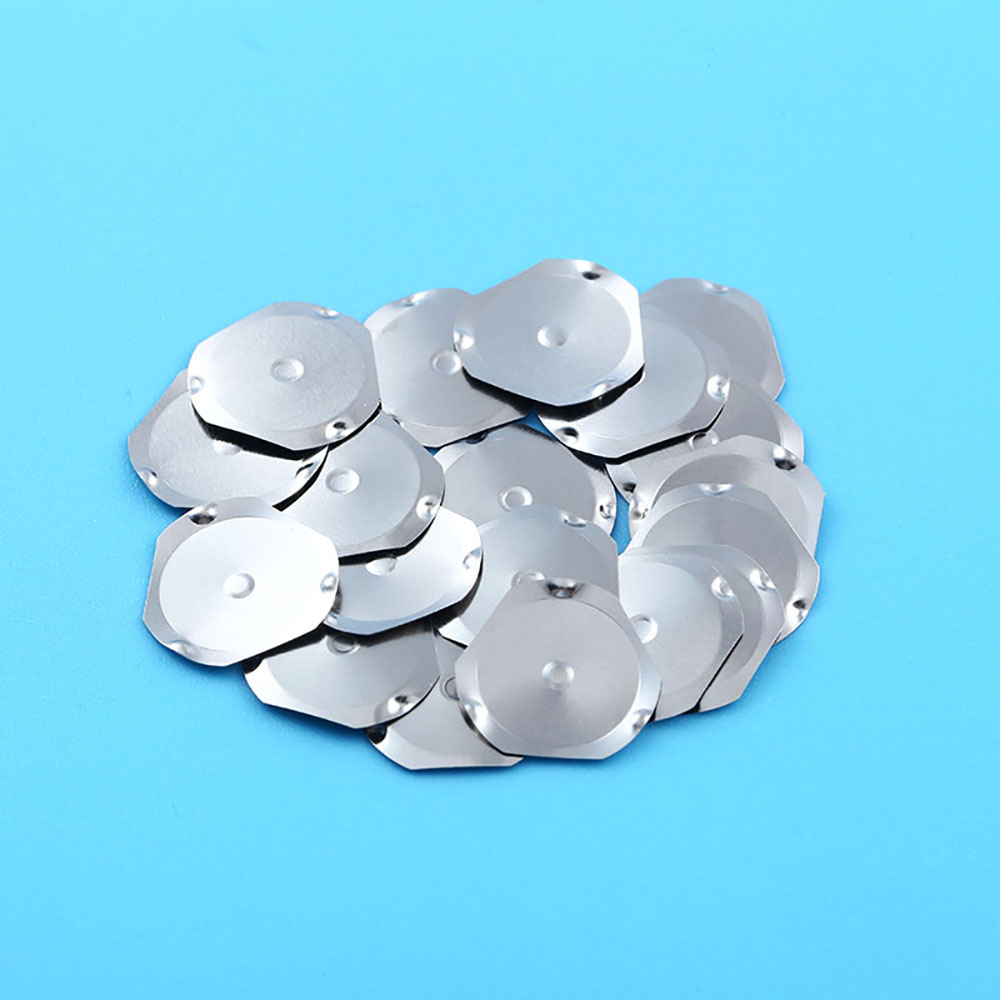

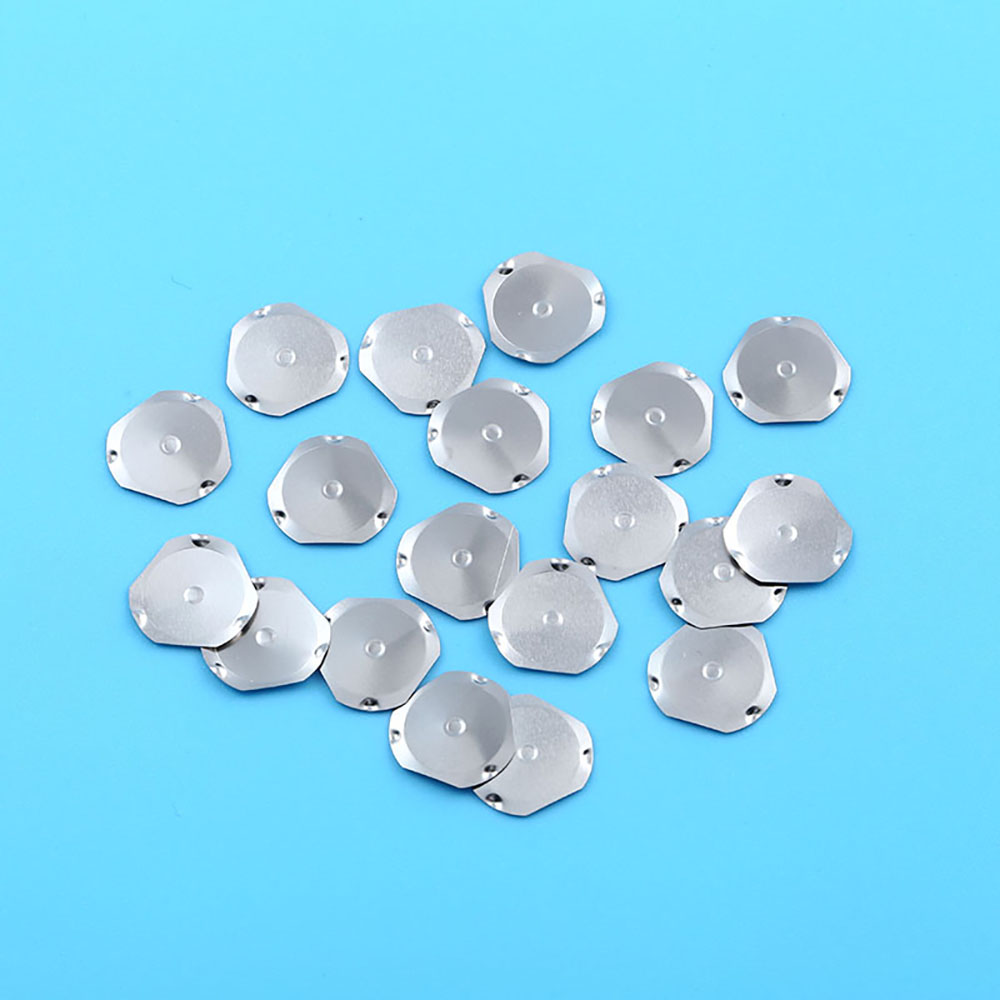

Triangle metal dome (triagle tactile metal domes) is triangle shaped metal dome which is designed for mounting on single or double sided printed circuit boards, flex circuits and membranes, where a Via is run through the circuit board.
Applications requiring a good click feeling but limited to narrow space, such as small, hand-held devices, are a perfect fit with our Triangle series metal domes. On the same diameter, we cag get biggest force from triangle dome. The Trip force which can reach up to 6,000gf (6kg), so this triangle tactile dome can be used as heavy force control switch to avoid careless operation.
Most of triangle dome has two legs (feet) which can insert into the hole of circuit board, so that it can be fixed on circuit without any adhesive tape and can be used in high temperature. Sometimes people named it as "metal dome with legs".
Shape:Triangular
Diameter:5-13mm
Force:150-6000gf
Surface plated:gold, silver, nickle
Features of the Square Dome Switch
Square Structure Design
Precision-formed edges and corners ensure a stable and uniform pressing feel.
High-quality Material
Made of SUS301 stainless steel, it offers excellent resilience and wear resistance. Diverse Specifications: Side length, thickness, and force range can be customized to meet customer product requirements.
Clear Tactile Sense
A distinct, step-like feel enhances the user experience.
Long Lifespan
Cycle lifespans reach over 500,000 to 1,000,000 cycles, suitable for long-term use.
Multiple Surface Treatments
Optional gold plating, nickel plating, and other processes enhance oxidation resistance and electrical conductivity.
Stainless steel domes Application scenarios
Industrial Equipment Control Panels
Test Instruments, Automation Controllers, Industrial Terminal Keypads
Communications Equipment
POS Machines, Intercoms, Radio Keypads
Consumer Electronics
Remote Controls, Game Controllers, Smart Appliance Control Panels
Medical Electronics
Portable Testers, Monitoring Terminal Operation Areas
Security and Access Control
PIN Pads, Time and Attendance Machines
Customised Metal Dome
To cater to a diverse range of dome products, Hongmao introduces triangular metal domes featuring multiple characteristics.

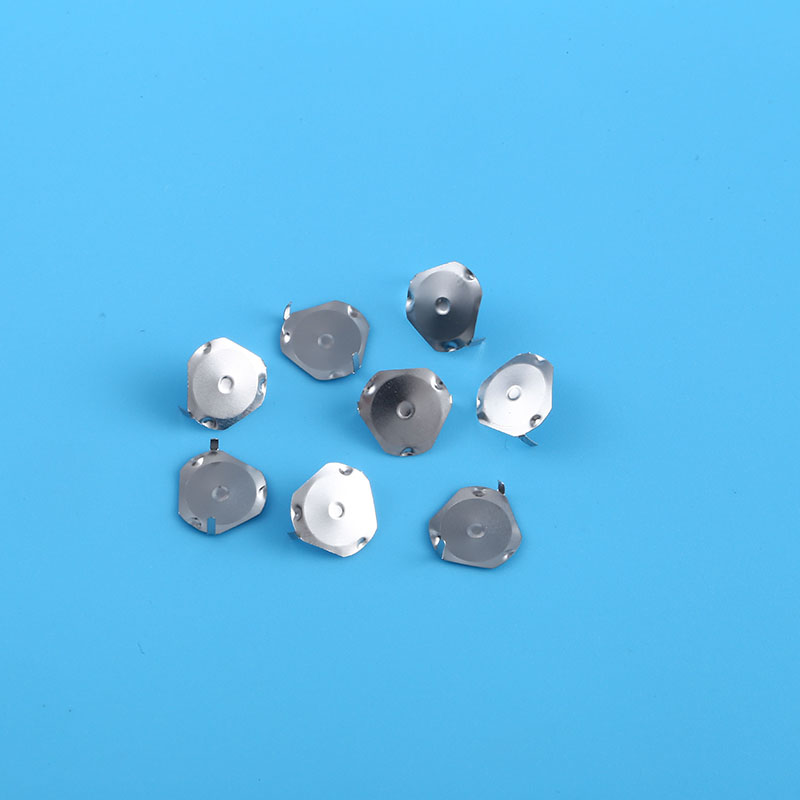

The press-fit protrusions on triangular metal domes are further categorised based on structural design, specifically distinguished by the presence and dimensions of pins. The following are four variants:
1. Without legs
2. Equipped with two short leads, 0.8mm wide and 0.8mm long
3. Equipped with two medium-length leads, 0.8mm wide and 1.5mm long
4. Equipped with two long legs, 0.8 mm wide and 3.0 mm long
These structural variations enable distinct mounting methods and performance characteristics, allowing the buttons to adapt flexibly to diverse devices and application scenarios.
