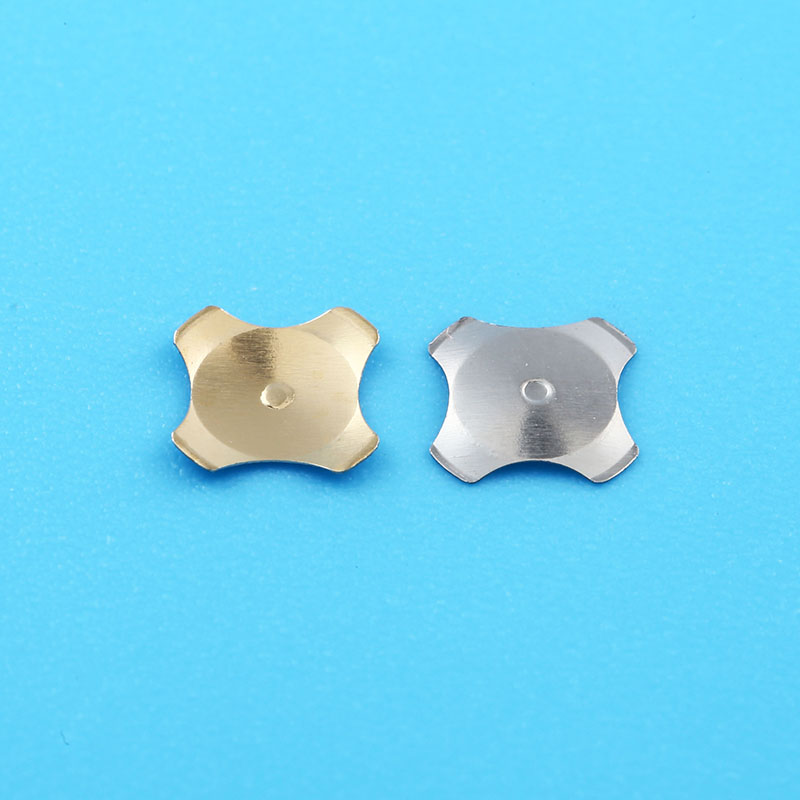

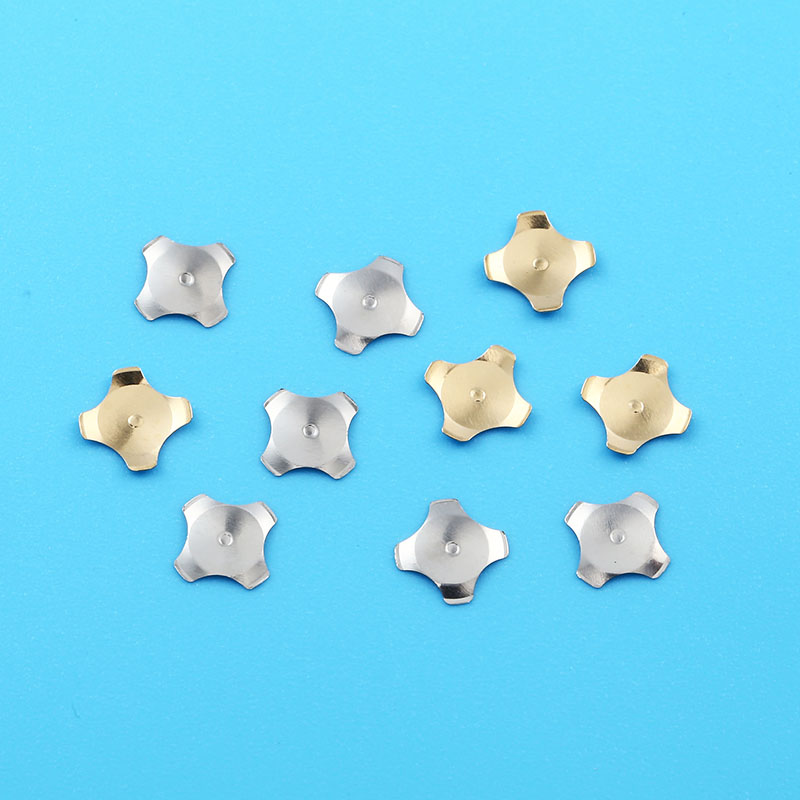

Crossed-shape Metal Domes are not only elegant in appearance, but also play a crucial role in various electronic devices. Whether it's a tactile switch or a reset membrane switch, they provide stable and reliable performance. Cross-shaped pot-shaped switches of different sizes and dimensions can meet various design requirements, making your projects more flexible and diverse.
Crossed-shape Metal Domes (snap domes) are with four-legged switches that were designed widely used in the printed circuit boards, flexible circuit boards and membrane switches. Whatever the life cycles and the click feeling, it’s far exceeds the circle shape metal domes. The life cycles of the most crossed-shape snap domes can reach to 1,000,000 times.
Crossed-shape snap domes (metal dome) are currently widely used in various single- and double-sided circuit boards, flexible circuits, membrane switches, medical devices, and other high-end electronic product accessories.
Cross-shaped Metal Domes come in two types: with contacts and without contacts. Even those with contacts only have one contact. Cross-shaped Metal Domes have a relatively large travel distance and produce a clear sound when operated. The cross-shaped Metal Dome without a base can be used in conjunction with stickers on products, making it suitable for various children's toys and electronic scales as a push-button switch. The cross-shaped Metal Dome generally requires a higher operating force than other types of Metal Domes and has a longer travel distance than other Metal Domes.
Crossed-shape Metal Dome Feature
Shape:Perforated Cross-Shaped
Diameter:11mm or customized
Force:280gf or customized
Surface plated:gold, silver, nickle
Features of Crossed-shape Metal Dome
Stable Support Structure
Four-leg design evenly distributes pressure, ensuring consistent tactile feedback and extended service life.
Premium Materials
Crafted from selected SUS301 high-elasticity stainless steel, guaranteeing superior resilience and reliable conductivity.
Diverse Specifications
Available in 11mm diameter or custom dimensions, with selectable contact force range (280gf) or tailored to your requirements, accommodating diverse product needs.
High-Precision Craftsmanship
Hongmao mould processing guarantees dimensional and elastic consistency for every component.
Gold Plating Option
Enhances corrosion resistance, suitable for harsh environments including high humidity and salt spray.
Customisable Shapes
Special shapes, pin positions, and contact force parameters can be tailored to client design specifications.
Why Choose Custom Metal Dome Applications?
Should you require distinctive actuation force, specific feedback, or uncommon dome shapes, bespoke solutions deliver a marked difference.
Custom domes can be tailored to your equipment layout, operating environment, and haptic objectives. You may select from multiple:
Materials (stainless steel, nickel-plated, gold-plated)
Force ratings (light, medium, heavy)
Shapes and dimensions
Coating options (corrosion-resistant or medical-grade)
Customisation also enhances brand identity. Even when faced with confined spaces or extreme environmental challenges, bespoke dome solutions precisely meet your requirements.
Metal Dome Manufacturer
The Crossed-shape Metal Dome features four support legs, delivering high actuation force and tactile feedback within equivalent dimensions. This series offers multiple sizes and actuation force specifications.
With its distinct tactile feedback, diverse styling options, and broad applicability, the four-leg microswitch can be mounted on various switch substrates, including single/double-sided printed circuit boards, flexible circuit boards, and membrane switch panels.
The Crossed-shape Metal Dome is also known as the Four Legs Tactile Metal Domes. Its most distinctive feature compared to other metal dome is the four-pin structural design. Compared to triangular metal dome, they offer a longer service life, typically exceeding 1 million cycles. They are widely used in single/double-sided printed circuit boards, flexible circuit boards, and membrane switches. Under identical diameter, actuation force, and actuation ratio conditions, their height exceeds that of other domes, and their price point is correspondingly higher.
