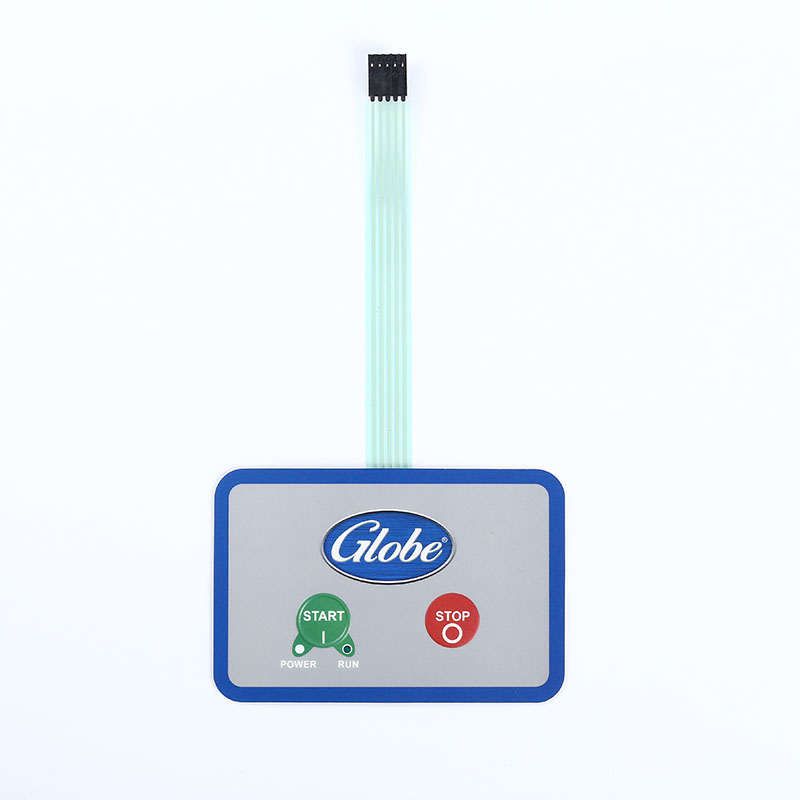

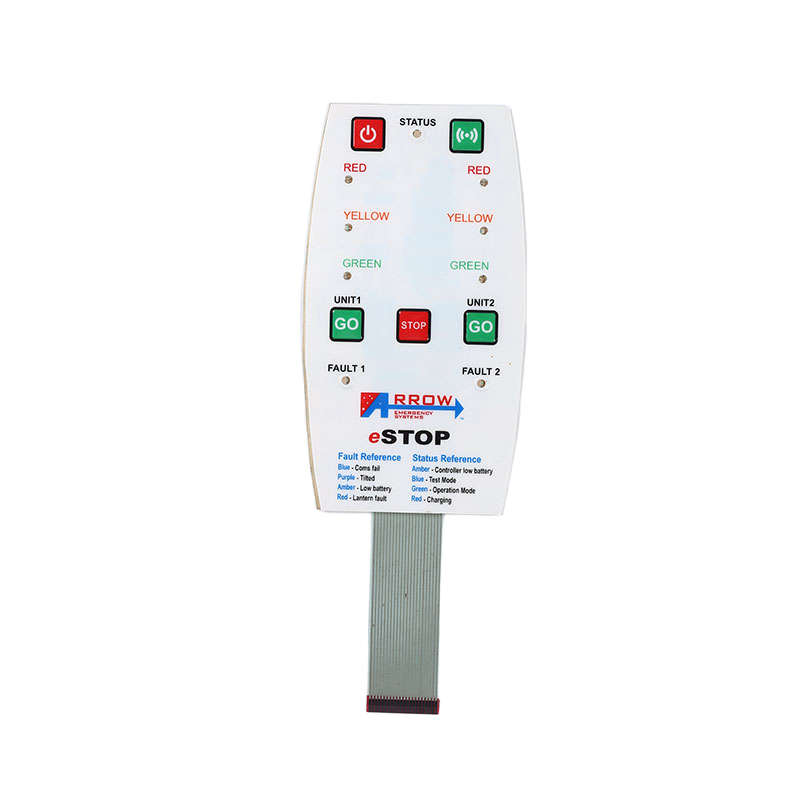

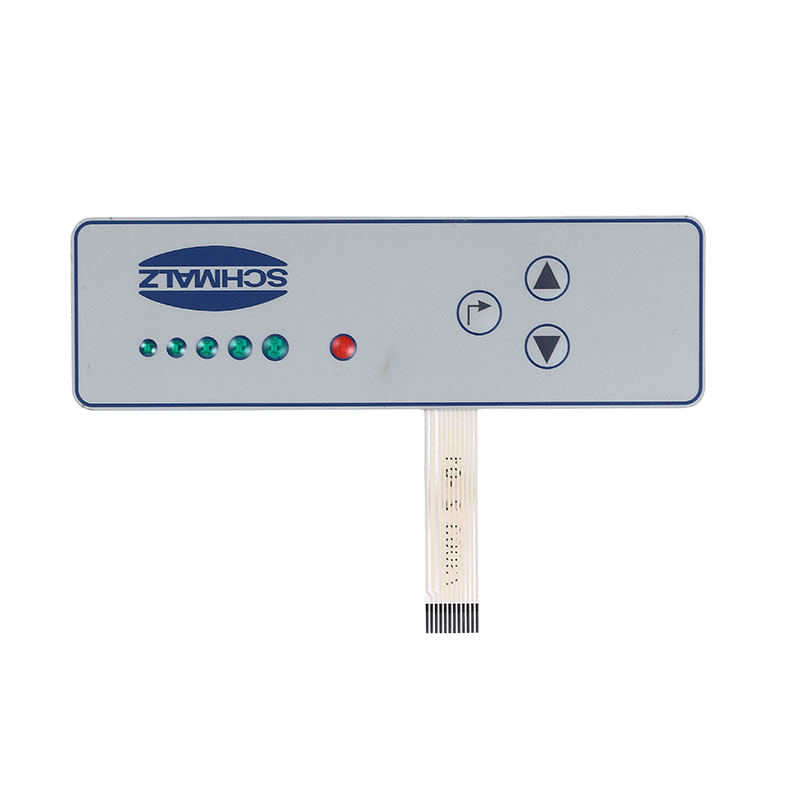

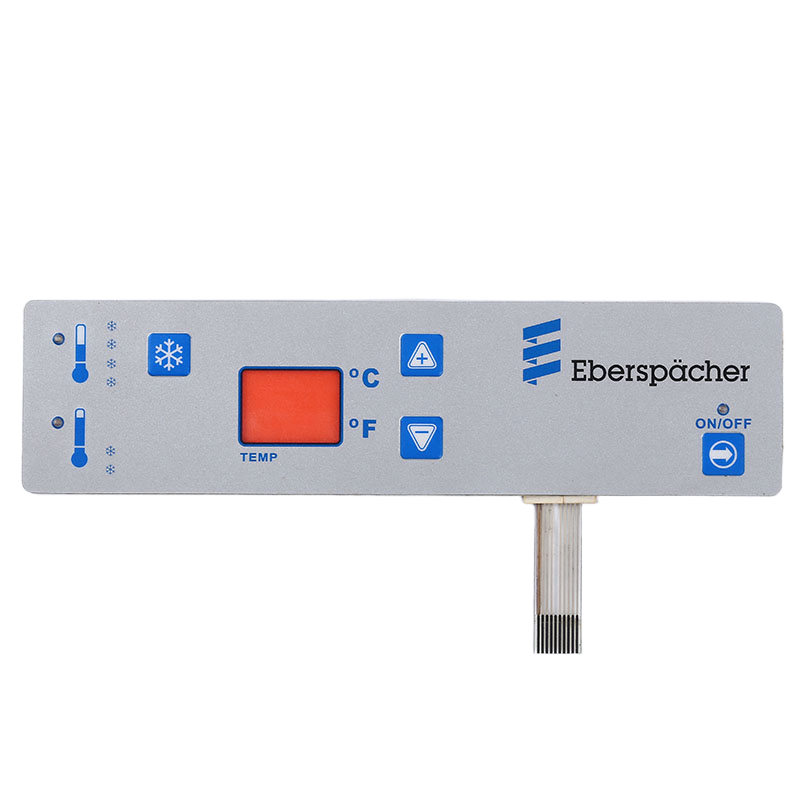

Backlit membrane switches are a commonly used electronic component for controlling the on/off state of circuits. They comprise a membrane switch and a backlight power supply, providing sufficient illumination in dark environments to enable users to clearly discern the switch's status.
The primary function of backlit membrane switches is to regulate the on/off state of electrical circuits. When the switch is in the closed position, current cannot flow through the circuit, thereby safeguarding the equipment from damage. When the switch is in the open position, current can flow through the circuit, enabling the equipment to operate normally. Consequently, backlit membrane switches are frequently employed to control various types of electronic devices, such as televisions, computers, mobile phones, and audio systems.
Features of LED backlighting membrane switch:
Backlight design: LED membrane switches achieve high visibility in low-light environments through their backlight design. LED light sources are evenly scattered through the microstructure of the light-guiding film (such as dots or prisms) to illuminate the keypad area, avoiding local bright spots and improving visual effects.
Lightweight and Flexible: LED thin-film switches typically have a thickness of less than 1 millimeter, making them suitable for use in compact spaces. Their lightweight and flexible design facilitates installation and portability.
Durability: LED membrane switches have a lifespan of over one million cycles, offering excellent durability. Additionally, they feature dustproof and waterproof properties (optional IP protection ratings), making them suitable for various environments.
Low Power Consumption: LED backlighting is energy-efficient, making it suitable for battery-powered devices and extending device usage time.
Customization: Supports multiple colors, brightness levels, and pattern designs to meet diverse user needs and personalized requirements.
Customisation LED Backlighting Membrane Switch
Backlight Effect Customisation: Supports monochrome lighting (e.g., red, green, blue, white), multi-colour illumination, dynamic RGB transitions, brightness adjustment, breathing light effects, and zone-specific illumination to meet diverse product requirements.
Form Factor and Dimensions Customisation: Fully adaptable to device panel designs, accommodating complex cutouts with ease to suit equipment of varied shapes and sizes.
Key Tactile Feedback Customisation: Offers multiple tactile options including metal springs, polyester springs, and non-tactile variants to meet diverse user preferences for key operation feel.
Wide Range of Applications
Medical equipment: Monitors, ventilators, infusion pumps, etc., requiring sealing and ease of sterilisation.
Industrial control: CNC machine tools, instrumentation, automation equipment panels, requiring dustproofing, waterproofing, and anti-interference properties.
Household appliances: Microwave ovens, dishwashers, coffee machines, smart kitchen appliances, etc., enhancing product quality.
Automotive electronics: Centre consoles, steering wheel control buttons, etc.
Consumer electronics: Gaming controllers, smart home control panels, office equipment, etc.
