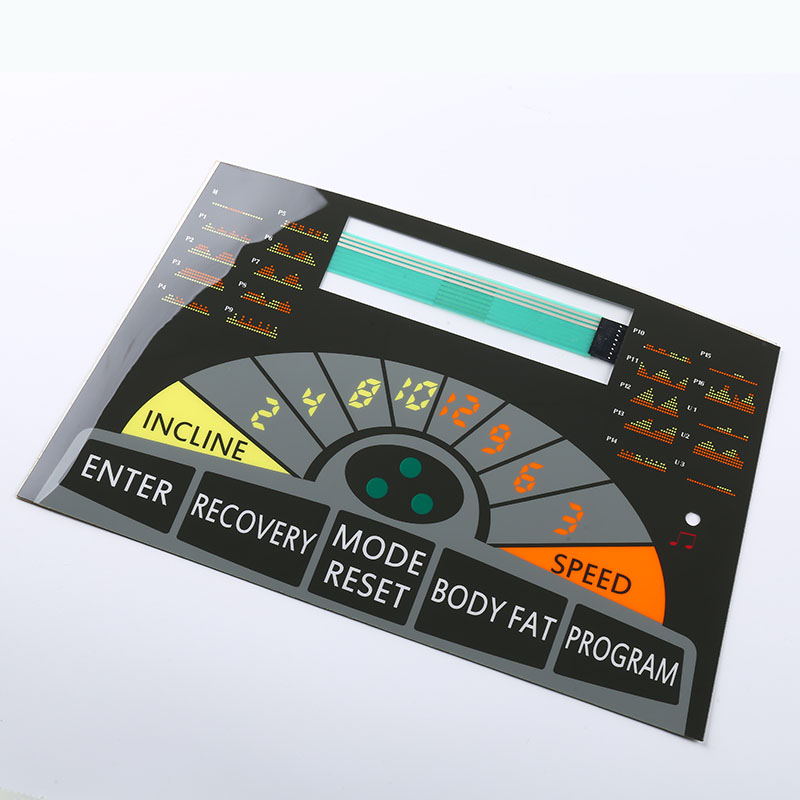

Automotive membrane switch control panels are input control components utilised within the automotive sector, characterised by their lightweight, durable and waterproof properties, enabling human-machine interaction functionality.
Membrane switch panel structural composition
Surface Layer: Constructed from polycarbonate (PC) or polyester (PET) material, printed with key identifiers, offering abrasion resistance and scratch-proof properties.
Upper Circuit Layer: Composed of circuits printed using conductive silver paste or carbon paste, responsible for signal transmission.
Spacer Layer: Typically an insulating film, used to isolate upper and lower circuits and prevent accidental contact. It features openings only at key locations to enable contact conductivity.
Lower Circuit Layer: Complements the upper circuit layer to form a closed circuit, constructed from materials similar to the upper layer.
Adhesive Backing Layer: Usually comprises 3M adhesive or acrylic adhesive, securing the panel to the vehicle equipment housing.
Features of automotive control membrane panel
Simplicity: Car center console UI design should avoid excessive complexity, allowing users to quickly locate the functions and buttons they need.
Ease of use: Button and menu designs should align with user habits to prevent unnecessary confusion during operation.
Adaptability: The UI design of a car's central control panel should adapt to different driving scenarios and user groups, meeting the needs of various users, such as adjusting volume, radio, navigation, etc.
Aesthetic appeal: The UI design of a car's central control panel should be aesthetically pleasing and harmonize with the vehicle's interior, enhancing the overall quality of the vehicle.
Application Scenarios
Centre Console: Commonly used for air conditioning control buttons and audio control buttons on vehicle centre consoles, enabling functions such as adjusting air conditioning temperature, fan speed, audio volume, and channel switching.
Instrument Panel: As part of the instrument panel buttons, these are used to adjust display parameters such as brightness control and odometer mode switching.
Door Handles: Certain vehicle door handles incorporate membrane switches, offering waterproof and oil-resistant properties. Through light-guiding film design, button symbols remain clearly visible at night.
Boot Release Button: External boot release buttons frequently employ membrane switches. Models featuring IP68-rated waterproofing effectively prevent ingress of rainwater and car wash water, ensuring reliable operation across diverse environmental conditions.
Key Factors Affecting the Production Lead Time of Membrane Switches
Design Complexity: Basic key layouts (without backlighting or special structures) have the shortest lead time. Integration of LED indicators, flexible circuits, waterproof sealing designs, or customised backlight patterns requires an additional 1-3 days for process debugging.
Material and Process Requirements: Utilising specialised materials (e.g., high-temperature-resistant PET, scratch-resistant PC), specialised printing techniques (e.g., UV-cured printing, digital printing), or bespoke moulds (e.g., raised key moulds) will extend the cycle by 1-5 days.
Communication and Confirmation Efficiency: The completeness of customer-provided drawings, clarity of specifications, and speed of sample confirmation feedback directly impact lead times. Multiple drawing revisions or repeated sample adjustments may add 3-7 days.
